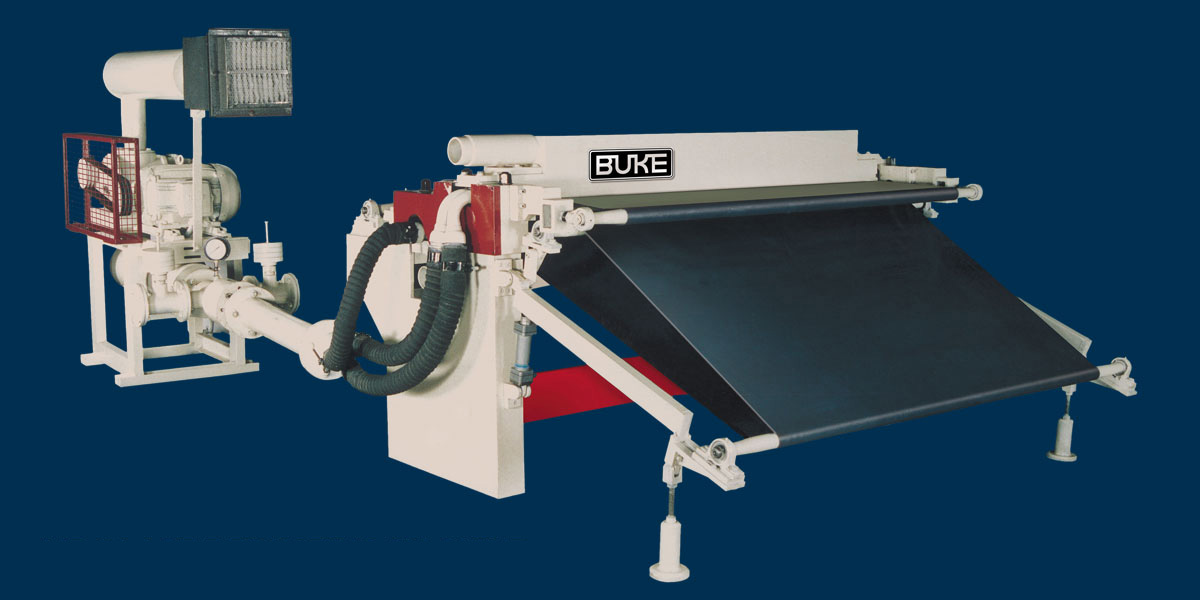

BUKE Airblast Dedusting Machines are manufactured in two models AD-130 & AD-180. The machines are designed and manufactured giving careful consideration to the problem of dust in finishing of leather. These Machines can be fitted after Throughfeed Buffing Machines to make a countinuous production system and the speed of the Dedusting Machine can be adjusted in accordance with the speed of Buffing Machine. The high level of technology and sophistication in the machine will guarantee dust free leather required in modern leather finishing processes.

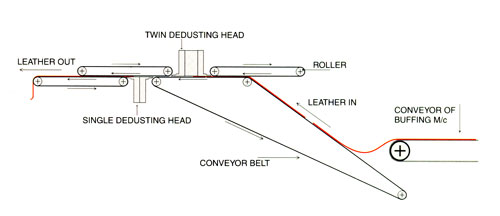

The machine is designed to have two dedusting heads on the top and one dedusting head at the bottom. This arrangement of jets ensures proper cleaning of leather on both the sides. The dedusting heads are carefully designed and manufactured to ensure smooth airflow and easy maintainance and cleaning.
BUKE Airblast Dedusting Machine can be easily connected to BUKE Through-feed Buffing Machine to give excellent results in the continuous process.
It is not necessary that these machines can be coupled only with BUKE machines, but can be joined with any Throughfeed Buffing Machine having conveyor for carrying out processed leather.
The leather coming out from Through-feed Buffing Machine will fall on the conveyor of Airblast Dedusting Machine and will be fed to the
machine automatically. BUKE Dedusting Machine can be operated
independently also, which gives flexibility in production. The conveyor speed of dedusting machine can be adjusted from 5 to 25 mtr./min. in accordance with the speed of Buffing Machine.
The machine is operated with special high speed compact roots blower which gives required quantity of air with pressure and minimum noise level. The blowers are having minimum spares to reduce maintenance cost.
|MODEL||AD - 130||AD - 180|
|Working Width||1300 mm||1800 mm|
|Dedusting Blower motor||15 K.W.||18 K.W.|
|Conveyor Motor||0.75 K.W.||0.75 K.W.|
|Feed speed||5 TO 25 mtr./min.||5 TO 25 mtr./min.|
|Net weight||1200 Kg.||1400 Kg.|
|Floor space||2100 x 1800 mm||2600 x 1800 mm|
|Conveyor Speed||5 to 25 m/min.||5 to 25 m/min.|
